Application Field
For reducing Acid Gases such as HF, HCl, Cl2, H2S, SO2, etc.
Characteristic
- Appearance & Size : Pellet (ø=3.0, more)
- Color : Black
- Bulk density : 0.60~0.65g/cc
- Crush strength : > 4.0kgf/㎠
- Upper temp. limit : < 100℃
Appearance
Reaction Mechanism
| Gas | Mechanism | TLV (ppm) |
|---|---|---|
| HCl | 3HCl + MO(OH) →MCl3 + 2H2O | 5 |
| Cl2 | Cl2 + 2MOH → 2MCl + H2O + 1/2O2 | 1 |
| H2S | Me(OH)2 + H2S → MeHS + 2H2O | 5 |
| 2Me(OH)2 + H2S → Me2S + 4H2O |

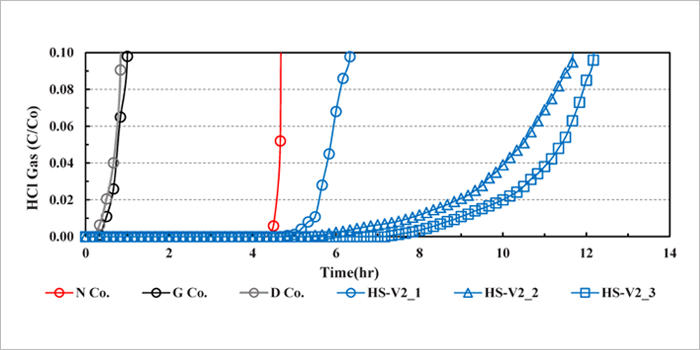

Test Example
Test Gas : HCl 1,000ppm in N2
Flow Rate : 100cc/min
Cat. Wt. : 0.5g
HANSO Products : HS-V2_1, HS-V2_2, HS-V2_3
