Applications

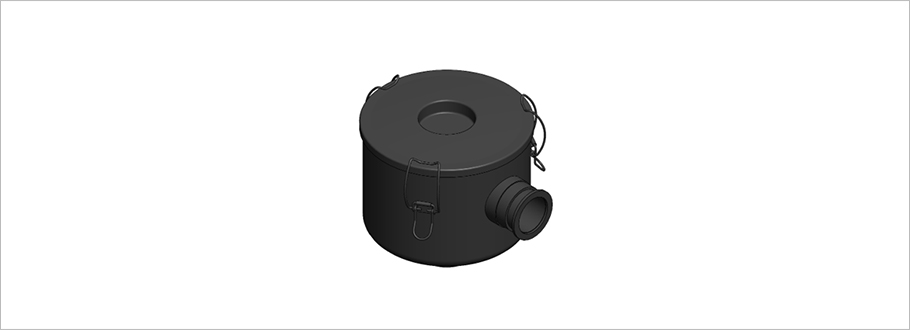

- A dry-media inlet traps to protect pumps from harmful acidic, alkaline, and organic gases
- Good for oil and dry pumps
- Prevents backstream of oil mist
- Removes organic substances such as NMP generated during secondary battery manufacturing
- Applicable to general industries, fine chemicals, hospitals, laboratories, central vacuum systems, and refining/petroleum industries
Characteristic
- Optimized dry media for different gases and materials
- High conductance designs of internal components and dry media
- Extend pump life (longer MTBF)
- Lower cost of pump service
- Simple maintenance (easy replacement of internal cartridge or entire unit in five minutes
- Minimize secondary contamination through chemical adsorption removal
Specification
Category |
Details |
|
|---|---|---|
General |
Model |
IT |
Material |
SUS 304 |
|
Applied sizes |
2 sizes for < 100 and 100~600 m3/hr |
|
Performance |
Treated gas |
Acids, alkaline gases, organic substances (VOCs), etc. |
Efficiency |
>99% |
|
Main Applications |
Oil Rotary Vane or dry pumps |
|
