XTIE BIOPARTICLES (Portable Biological Particle Collection Device) PDF DOWNLOAD

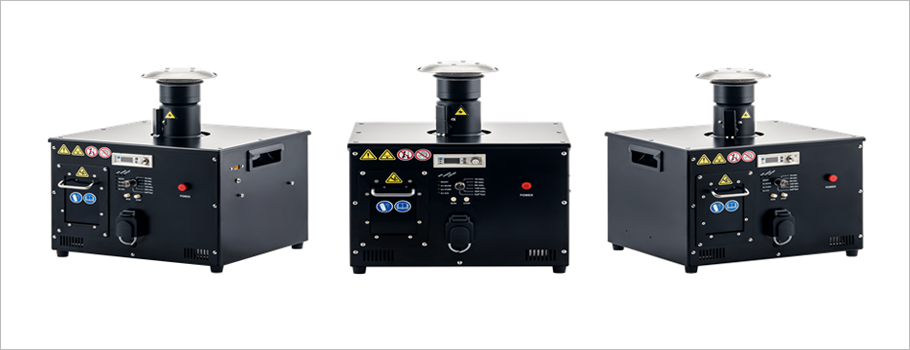

XTIE BIOPARTICLES (Portable Biological Particle Collection Device)
Applications
- Medical facilities such as hospitals, custom inspection areas at terminals, airports and ports, etc. treating and inspecting bird influenza, mutated influenza, MERS, Foot-to-mouth disease, COVID-19, etc.
- Military facility, public places with airports, transportation terminals, harbor, bus stations, etc.
- Measurement of air quality and environmental concerns to human health with virus and bacteria
Characteristic
- Model : HS-BVC
- Electric bacteria concentrator/collection device by making bacteria electrically charged
- Extremely effective non-destructive collection of bacteria less than 1 microns(µm)
XTIE BIOPARTICLES SPECIFICATION SHEET
Item |
Description |
|
|---|---|---|
Sampling Flow Rate |
2.0 Liters Per Min, Adjustable |
|
Particle Size Collection |
0.05-10 Micron |
|
Liquid Sample Volume |
0.2~0.5 mL |
|
Sampling Times |
10, 30, 60, 120 and 300 Min |
|
Dimensions |
Overall |
W 280mm x L 300mm x H 400mm |
Weight |
9.5 Kg (Including Battery :15kg) |
|
Battery |
24VDC, 13Ah, Lithium-Ion Phosphate Battery, 5kg |
|
Electrical |
220VAC, 60 Hz, Single Phase, 30W |
|
