Application Field
For reducing Toxic Industrial Chemicals(TICs) such as H2S, SO2, Cl2, C6H12, etc.
Characteristic
- Appearance & Size : Granule type
- Color : Black
- Bulk density : 0.5~0.6g/cc
- Total pore volume : 0.7cc/g
- Upper temp. limit : < 150℃
Appearance
Reaction Mechanism
| Gas | Mechanism |
|---|---|
| Cl2 | C-CuO + Cl2 → C-CuCl2 + H2O |
| H2S | C-Cu(OH)2 + H2S → C-CuS + 2H2O |
| C=O + H2S → C-S + H2O | |
| SO2 | C-KOH + SO2 → C-K2SO4 + H2O, C-SO* |

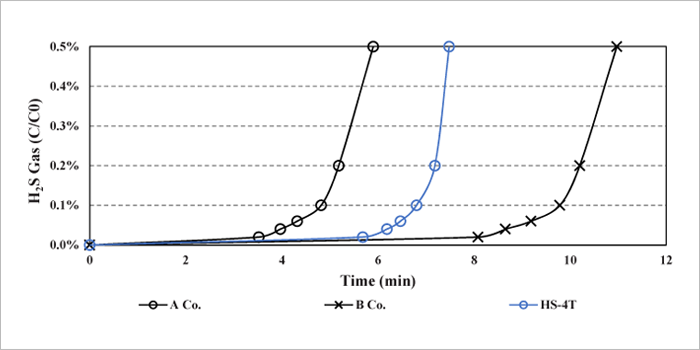

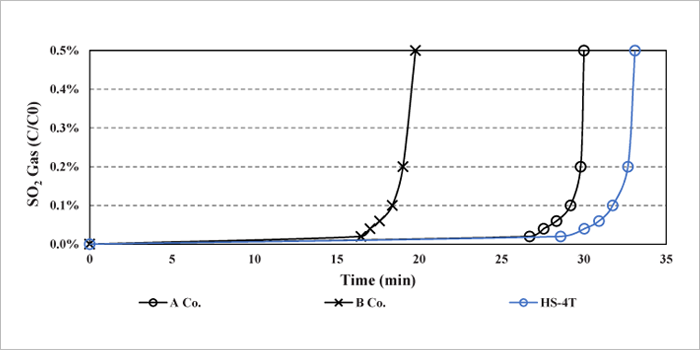

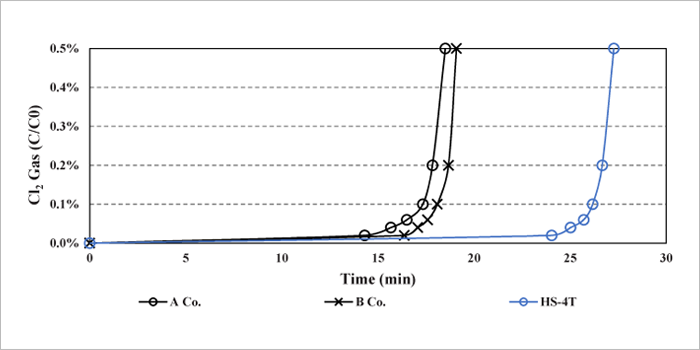

Test Example
Test Gas : Cl2, H2S, SO2
Flow Rate : 100cc/min
Test Wt. : 0.5g
Inlet Con. : 5,000ppm
